GIYA G3

FOR EVERY ROOM,

NOT JUST

LISTENING ROOMS.

GIYA G3

MAKE AN ENQUIRY

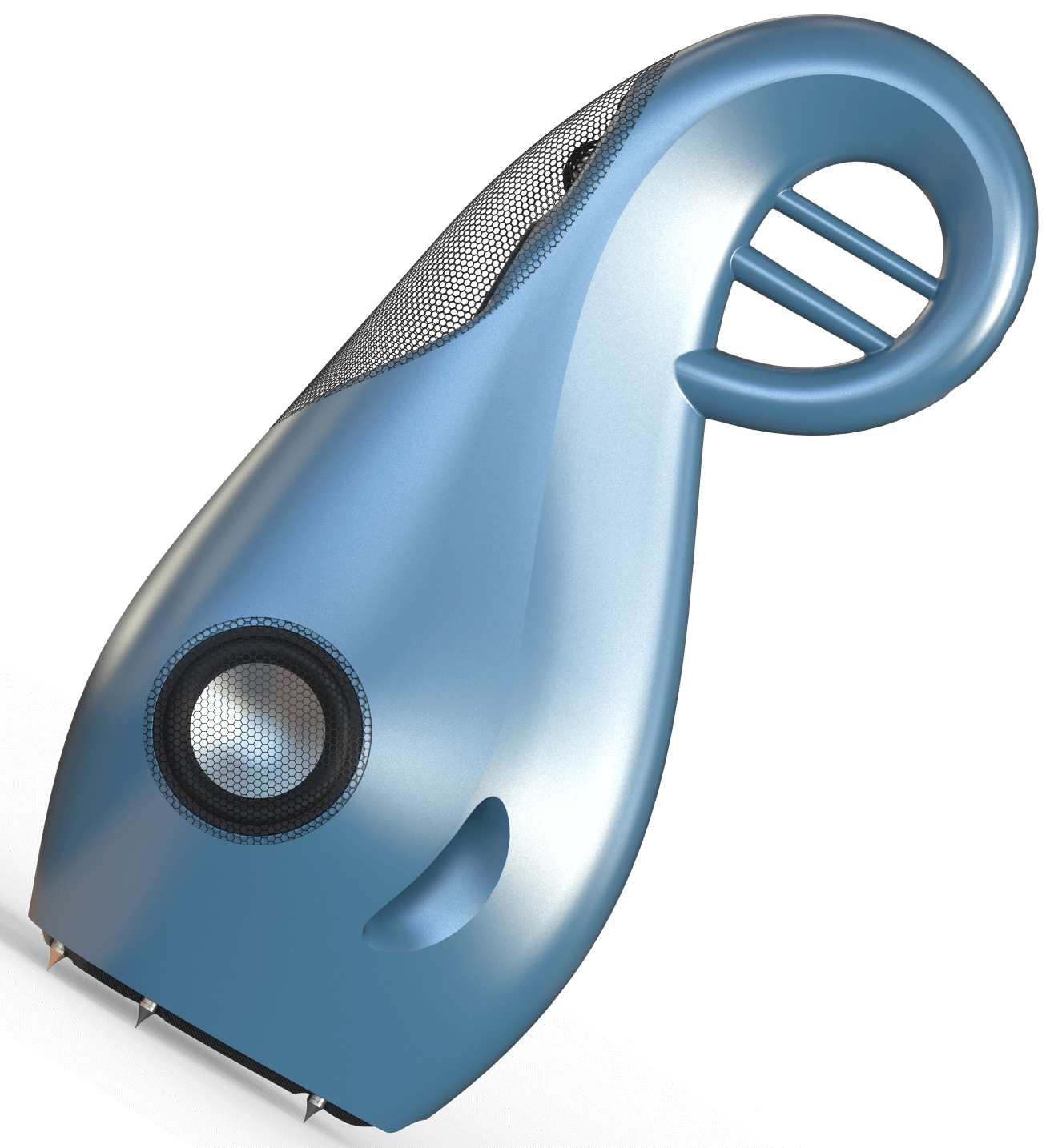

VIVID Audio GIYA G3

GREAT THINGS IN SMALL PACKAGES

Retaining the motor structure and suspension profiles of the larger siblings, the G3 is capable of producing substantial bass energy despite its reduced diameter. The top of the bass enclosure displays the now uniquely familiar curl of the tapered tube absorber to completely eliminate the top to bottom resonances and deliver sharp accurate bass.

RELATIVE VALUES

With its distinctive composite enclosure, the G3 is unmistakeably part of the GIYA family, and a direct descendent of the pioneering G1. And like them, its striking design is driven entirely by function. The curling tapered tube absorber completely eliminates top-to-bottom resonances to deliver sharp, accurate bass from the paired C135 drivers – and with a power you have to hear to believe, given the G3’s compact size.

EXPRESS YOURSELF

Even at just 1.1 metres tall, the G3 loudspeaker makes its presence felt. You may wish to make a feature of its radical, sculptural design; or you might prefer to let its work speak for it instead. With our range of colours, you can make your loudspeakers as subtle or strident, restrained or resplendent as you like. The G3 is available in two standard finishes – pearl white and piano black – and any other colour you desire by special order.

SEE FOR YOURSELF

Specifications Vivid Audio GIYA G3 Series 2
Configuration 4-way 5 driver system
Cabinet material Glass reinforced balsa cored sandwich composite, carbon fibre base
Cabinet colour Piano Black, Pearl White, Oyster Matte
Bespoke colour Available on request
Drive units HF: D26 – 26 mm metal dome unit with Tapered Tube loading
Mid: D50 – 50 mm metal dome unit with Tapered Tube loading
Lower-mid: C125s, 125 mm alloy cone unit with Tapered Tube loading
Bass: C135 – 2 x 135 mm alloy cone unit with short-coil long-gap motor design
Bass loading Exponentially Tapered Tube enhanced bass reflex
Sensitivity 87 dB @ 2.83 VRMS at 1 m on axis
Nominal impedacnce (Ω) 6 nominal, 4 minimum, low reactance
Frequency range (Hz) -6dB points: 33 – 36.000 Hz
First D26 Break Up mode: 44000 Hz
Frequency response 36 – 33.000 Hz +/- 2 dB on reference
Harmonic distortion
(2nd and 3rd harmonics)
< 0,5% over frequency range
Cross over frequencies (Hz) 220 – 880 – 3.500
Power handling (music programm) watts rms 800
Loudspeaker dimensions 1.161mm (H) x 341mm (W) x 578mm (D)
Net weight 42kg
